New launch: The Tympan Rev F!

Tympan Rev F
Tympan Rev F
Tympan Rev F

Tympan Rev F

Regular price
$329.99
Regular price
Sale price
$329.99
Unit price
per
Availability
Sold out



Each Tympan unit comes fully tested and programmed with the basic firmware sketch called BasicGain.ino from our Tympan Arduino Library so you can get started right out of the box.

We ship internationally!
All orders placed today will ship within 1 business day.

Rev F Specs:

  • Teensy 4.1 Processor
    • 600MHz ARM with Floating Point Unit
    • Arduino Compatible
    • Teensy 4.1 Soldered directly to the Tympan F
    • RTC Coin Battery Included
  • CODEC
    • Low Power 32 bit TLC320AIC3206
  • Bluetooth
    • nRF52840 BLE Radio Module MDBT50Q-1MV2
    • Arduino Compatible Adafruit Feather nRF52840 Bootloader
    • Firmware Updates Over The Air

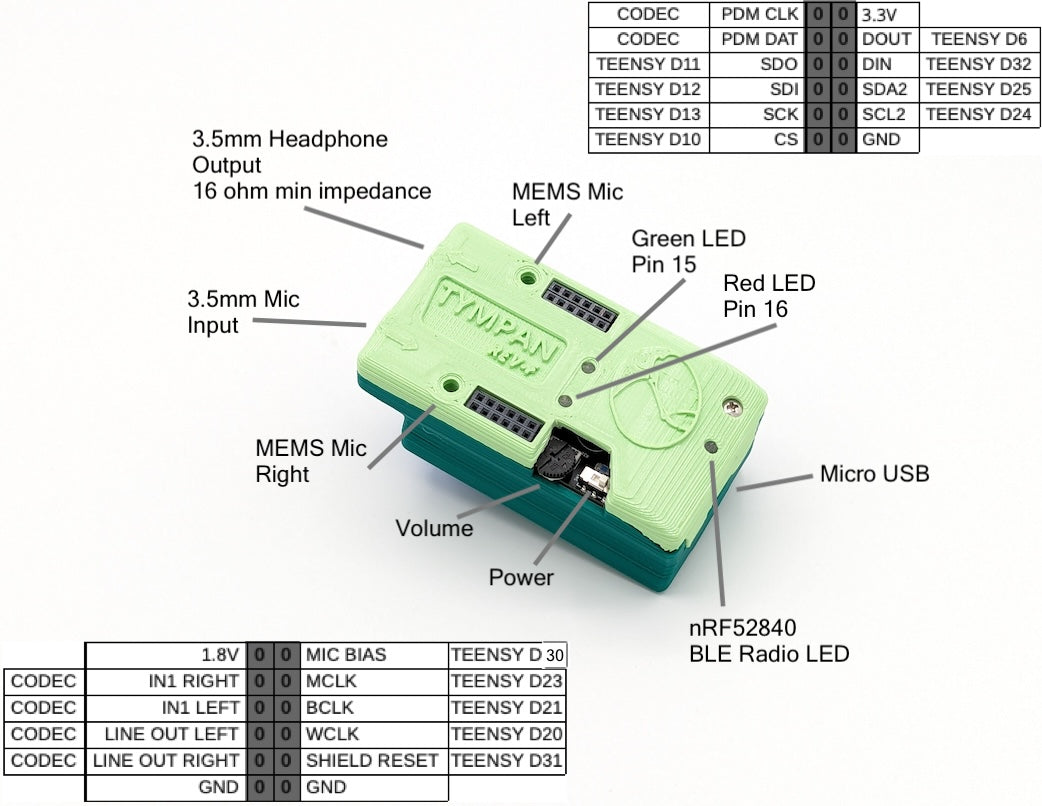

  • 2 On Board Knowles MEMS Microphones
  • 3.5mm Audio jacks for external microphone and speakers/headset
  • Optional Line In/Out pins broken out
  • microSD card slot for audio recording and data logging
  • Qwiic/STEMMA-QT connector
  • Additional Pins Broken Out
    • I2S bus for additional CODEC
    • SPI bus
    • PDM Digital Microphone Bus
    • I2C bus
  • LiPo battery (included) and USB charging circuitry
  • Programmable with the latest Arduino IDE

We do NOT include an external microphone or headphones. Our 3.5mm jacks are compatible with standard audio devices.

     Tympan is Open Source Hardware
